Applications:

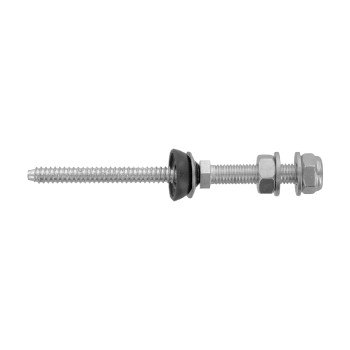

This specialized fastener is designed for mounting solar panel systems, ensuring secure and reliable installations. The screw length calculation follows a specific formula: required length equals the height of the trapezoid profile or sandwich panel thickness plus 20mm for optimal engagement.
Fields of use:
The fastener is specifically engineered for solar panel mounting systems, particularly in rooftop installations where durability and weather resistance are crucial. Made exclusively from high-grade stainless steel, it provides excellent corrosion resistance and long-term reliability.
Characteristics:
Material: Premium stainless steel construction
Pre-drilling specifications vary based on base material thickness: Material Thickness Required Drill Diameter
1.5 – 5.0 mm 6.8 mm
6.0 mm 7.0 mm
8.0 mm 7.2 mm
> 10 mm 7.4 mm
Note: Always verify compliance with local building regulations and installation guidelines.
| Weight | N/A |
|---|---|
| Selected product | A2 BZ 8,0X100/50 FCS Ø25, A2 BZ 8,0X100/70 FCS Ø25, A2 BZ 8,0X125/50 FCS Ø25, A2 BZ 8,0X125/70 FCS Ø25, A2 BZ 8,0X150/50 FCS Ø25, A2 BZ 8,0X150/70 FCS Ø25, A2 BZ 8,0X160/50 FCS Ø25, A2 BZ 8,0X160/70 FCS Ø25, A2 BZ 8,0X200/50 FCS Ø25, A2 BZ 8,0X200/70 FCS Ø25, A2 BZ 8,0X80/50 FCS Ø25, A2 BZ 8,0X80/70 FCS Ø25, A2 A 8,4X100/50 FCS Ø25, A2 A 8,4X100/70 FCS Ø25, A2 A 8,4X130/50 FCS Ø25, A2 A 8,4X130/70 FCS Ø25, A2 A 8,4X150/50 FCS Ø25, A2 A 8,4X150/70 FCS Ø25, A2 A 8,4X180/50 FCS Ø25, A2 A 8,4X180/70 FCS Ø25, A2 A 8,4X200/50 FCS Ø25, A2 A 8,4X200/70 FCS Ø25, A2 A 8,4X80/50 FCS Ø25, A2 A 8,4X80/70 FCS Ø25, A2 BZ 8,0X100/50, A2 BZ 8,0X100/70, A2 BZ 8,0X125/50, A2 BZ 8,0X125/70, A2 BZ 8,0X150/50, A2 BZ 8,0X150/70, A2 BZ 8,0X160/50, A2 BZ 8,0X160/70, A2 BZ 8,0X200/50, A2 BZ 8,0X200/70, A2 BZ 8,0X80/50, A2 BZ 8,0X80/70, A2 A 8,4X100/50, A2 A 8,4X100/70, A2 A 8,4X130/50, A2 A 8,4X130/70, A2 A 8,4X150/50, A2 A 8,4X150/70, A2 A 8,4X180/50, A2 A 8,4X180/70, A2 A 8,4X200/50, A2 A 8,4X200/70, A2 A 8,4X80/50, A2 A 8,4X80/70 |
