Applications
These screws are perfectly suited for outdoor assembly tasks, including solar installations, carports, balconies, staircases, playground structures, prefabricated homes, and other load-bearing components.
To ensure optimal performance, a minimum screw-in depth of four times the screw diameter is required. Ideally, a depth of eight times the diameter should be achieved. Depths exceeding twelve times the diameter should not be factored into structural calculations.
Fields of Use
Timber construction and solar applications.
Characteristics

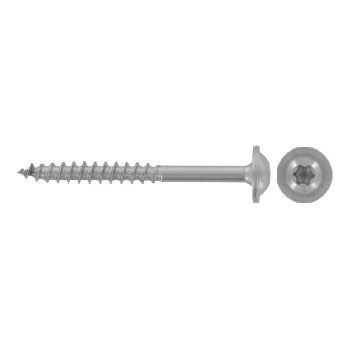

Timber screws with pan washer heads
Special cutting tip for easier penetration
Anti-friction coating for smooth installation
TX drive for enhanced torque transmission
| Weight | N/A |
|---|---|
| Selected product | A2 10,0X100/55 TX40, A2 10,0X110/80 TX40, A2 10,0X120/80 TX40, A2 10,0X130/80 TX40, A2 10,0X140/80 TX40, A2 10,0X150/80 TX40, A2 10,0X160/80 TX40, A2 10,0X170/80 TX40, A2 10,0X180/105 TX40, A2 10,0X190/105 TX40, A2 10,0X200/105 TX40, A2 10,0X220/105 TX40, A2 10,0X240/105 TX40, A2 10,0X250/105 TX40, A2 10,0X260/105 TX40, A2 10,0X280/105 TX40, A2 10,0X300/105 TX40, A2 10,0X320/105 TX40, A2 10,0X340/105 TX40, A2 10,0X350/105 TX40, A2 10,0X360/105 TX40, A2 10,0X380/105 TX40, A2 10,0X400/105 TX40, A2 10,0X60/50 TX40, A2 10,0X70/55 TX40, A2 10,0X80/55 TX40, A2 10,0X90/55 TX40, A2 3,0X20 TX10, A2 3,0X25/18 TX10, A2 3,0X30/18 TX10, A2 3,0X35/24 TX10, A2 3,0X40/24 TX10, A2 3,0X45/30 TX10, A2 3,0X50/30 TX10, A2 4,0X20 TX20, A2 4,0X25/18 TX20, A2 4,0X30/18 TX20, A2 4,0X35/24 TX20, A2 4,0X40/24 TX20, A2 4,0X45/30 TX20, A2 4,0X50/30 TX20, A2 4,0X55/36 TX20, A2 4,0X60/36 TX20, A2 4,0X65/36 TX20, A2 4,0X70/42 TX20, A2 4,0X80/48 TX20, A2 4,5X100/60 TX20, A2 4,5X20 TX20, A2 4,5X25/18 TX20, A2 4,5X30/18 TX20, A2 4,5X35/24 TX20, A2 4,5X40/24 TX20, A2 4,5X45/30 TX20, A2 4,5X50/30 TX20, A2 4,5X55/36 TX20, A2 4,5X60/36 TX20, A2 4,5X65/36 TX20, A2 4,5X70/42 TX20, A2 4,5X80/48 TX20, A2 4,5X90/54 TX20, A2 5,0X100/60 TX25, A2 5,0X120/70 TX25, A2 5,0X25/18 TX25, A2 5,0X30/20 TX25, A2 5,0X35/24 TX25, A2 5,0X40/24 TX25, A2 5,0X45/30 TX25, A2 5,0X50/30 TX25, A2 5,0X55/36 TX25, A2 5,0X60/36 TX25, A2 5,0X65/36 TX25, A2 5,0X70/42 TX25, A2 5,0X80/48 TX25, A2 5,0X90/54 TX25, A2 6,0X100/70 TX25, A2 6,0X110/70 TX25, A2 6,0X120/70 TX25, A2 6,0X130/70 TX25, A2 6,0X140/70 TX25, A2 6,0X150/70 TX25, A2 6,0X160/70 TX25, A2 6,0X170/70 TX25, A2 6,0X180/70 TX25, A2 6,0X190/70 TX25, A2 6,0X200/70 TX25, A2 6,0X220/70 TX25, A2 6,0X240/70 TX25, A2 6,0X260/70 TX25, A2 6,0X280/70 TX25, A2 6,0X30/20 TX25, A2 6,0X300/70 TX25, A2 6,0X35/24 TX25, A2 6,0X40/24 TX25, A2 6,0X45/30 TX25, A2 6,0X50/30 TX25, A2 6,0X55/36 TX25, A2 6,0X60/36 TX25, A2 6,0X65/36 TX25, A2 6,0X70/42 TX25, A2 6,0X80/48 TX25, A2 6,0X90/54 TX25, A2 8,0X100/80 TX40, A2 8,0X110/80 TX40, A2 8,0X120/80 TX40, A2 8,0X130/80 TX40, A2 8,0X140/80 TX40, A2 8,0X150/80 TX40, A2 8,0X160/80 TX40, A2 8,0X170/80 TX40, A2 8,0X180/80 TX40, A2 8,0X190/80 TX40, A2 8,0X200/80 TX40, A2 8,0X220/80 TX40, A2 8,0X240/80 TX40, A2 8,0X250/80 TX40, A2 8,0X260/80 TX40, A2 8,0X280/80 TX40, A2 8,0X30 TX40, A2 8,0X300/80 TX40, A2 8,0X320/80 TX40, A2 8,0X340/80 TX40, A2 8,0X350/80 TX40, A2 8,0X360/80 TX40, A2 8,0X380/80 TX40, A2 8,0X40 TX40, A2 8,0X400/80 TX40, A2 8,0X50 TX40, A2 8,0X60/50 TX40, A2 8,0X70/50 TX40, A2 8,0X80/72 TX40, A2 8,0X90/80 TX40, A4 10,0X100/55 TX40, A4 10,0X110/80 TX40, A4 10,0X120/80 TX40, A4 10,0X130/80 TX40, A4 10,0X140/80 TX40, A4 10,0X150/80 TX40, A4 10,0X160/80 TX40, A4 10,0X170/80 TX40, A4 10,0X180/105 TX40, A4 10,0X190/105 TX40, A4 10,0X200/105 TX40, A4 10,0X220/105 TX40, A4 10,0X240/105 TX40, A4 10,0X250/105 TX40, A4 10,0X260/105 TX40, A4 10,0X280/105 TX40, A4 10,0X300/105 TX40, A4 10,0X320/105 TX40, A4 10,0X340/105 TX40, A4 10,0X350/105 TX40, A4 10,0X360/105 TX40, A4 10,0X380/105 TX40, A4 10,0X400/105 TX40, A4 10,0X60/50 TX40, A4 10,0X70/55 TX40, A4 10,0X80/55 TX40, A4 10,0X90/55 TX40, A4 3,0X20 TX10, A4 3,0X25/18 TX10, A4 3,0X30/18 TX10, A4 3,0X35/24 TX10, A4 3,0X40/24 TX10, A4 3,0X45/30 TX10, A4 3,0X50/30 TX10, A4 4,0X20 TX20, A4 4,0X25/18 TX20, A4 4,0X30/18 TX20, A4 4,0X35/24 TX20, A4 4,0X40/24 TX20, A4 4,0X45/30 TX20, A4 4,0X50/30 TX20, A4 4,0X55/36 TX20, A4 4,0X60/36 TX20, A4 4,0X65/36 TX20, A4 4,0X70/42 TX20, A4 4,0X80/48 TX20, A4 4,5X100/60 TX20, A4 4,5X20 TX20, A4 4,5X25/18 TX20, A4 4,5X30/18 TX20, A4 4,5X35/24 TX20, A4 4,5X40/24 TX20, A4 4,5X45/30 TX20, A4 4,5X50/30 TX20, A4 4,5X55/36 TX20, A4 4,5X60/36 TX20, A4 4,5X65/36 TX20, A4 4,5X70/42 TX20, A4 4,5X80/48 TX20, A4 4,5X90/54 TX20, A4 5,0X100/60 TX25, A4 5,0X120/70 TX25, A4 5,0X25/18 TX25, A4 5,0X30/20 TX25, A4 5,0X35/24 TX25, A4 5,0X40/24 TX25, A4 5,0X45/30 TX25, A4 5,0X50/30 TX25, A4 5,0X55/36 TX25, A4 5,0X60/36 TX25, A4 5,0X65/36 TX25, A4 5,0X70/42 TX25, A4 5,0X80/48 TX25, A4 5,0X90/54 TX25, A4 6,0X100/70 TX25, A4 6,0X110/70 TX25, A4 6,0X120/70 TX25, A4 6,0X130/70 TX25, A4 6,0X140/70 TX25, A4 6,0X150/70 TX25, A4 6,0X160/70 TX25, A4 6,0X170/70 TX25, A4 6,0X180/70 TX25, A4 6,0X190/70 TX25, A4 6,0X200/70 TX25, A4 6,0X220/70 TX25, A4 6,0X240/70 TX25, A4 6,0X260/70 TX25, A4 6,0X280/70 TX25, A4 6,0X30/20 TX25, A4 6,0X300/70 TX25, A4 6,0X35/24 TX25, A4 6,0X40/24 TX25, A4 6,0X45/30 TX25, A4 6,0X50/30 TX25, A4 6,0X55/36 TX25, A4 6,0X60/36 TX25, A4 6,0X65/36 TX25, A4 6,0X70/42 TX25, A4 6,0X80/48 TX25, A4 6,0X90/54 TX25, A4 8,0X100/80 TX40, A4 8,0X110/80 TX40, A4 8,0X120/80 TX40, A4 8,0X130/80 TX40, A4 8,0X140/80 TX40, A4 8,0X150/80 TX40, A4 8,0X160/80 TX40, A4 8,0X170/80 TX40, A4 8,0X180/80 TX40, A4 8,0X190/80 TX40, A4 8,0X200/80 TX40, A4 8,0X220/80 TX40, A4 8,0X240/80 TX40, A4 8,0X250/80 TX40, A4 8,0X260/80 TX40, A4 8,0X280/80 TX40, A4 8,0X30 TX40, A4 8,0X300/80 TX40, A4 8,0X320/80 TX40, A4 8,0X340/80 TX40, A4 8,0X350/80 TX40, A4 8,0X360/80 TX40, A4 8,0X380/80 TX40, A4 8,0X40 TX40, A4 8,0X400/80 TX40, A4 8,0X50 TX40, A4 8,0X60/50 TX40, A4 8,0X70/50 TX40, A4 8,0X80/72 TX40, A4 8,0X90/80 TX40 |
