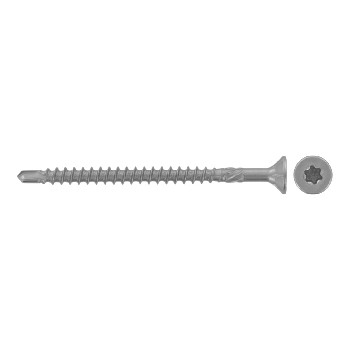

CSK head timber screws, drilling point, milling ribs

Product description

Applications
Perfect for businesses in the wood processing sector, such as carpentry and timber construction, as well as for horticulturists and landscapers working on timber fastening and constructing landing stages. Additionally, it serves as an excellent choice for hardwoods like Bankirai, Massaranduba, and others.
To ensure proper installation, the screw-in depth should be at least 4 times the screw diameter. For optimal results, a depth of 8 times the diameter is recommended, depending on the type of wood.

Fields of use
Timber construction

Characteristics
90° countersunk head
Self-drilling tip
Ribs beneath the head
Milling ribs for better performance
TX drive system for enhanced torque transmission
Hardened martensitic stainless steel (1.4006)
Anti-friction coating for smoother application

Additional information

Weight	N/A
Selected product	AISI 410 3,5X25/15 TX15, AISI 410 3,5X30/18 TX15, AISI 410 4,0X30/18 TX15, AISI 410 4,0X35/24 TX15, AISI 410 4,0X40/24 TX15, AISI 410 4,0X45/30 TX15, AISI 410 4,0X50/30 TX15, AISI 410 4,0X60/36 TX15, AISI 410 4,0X70/42 TX15, AISI 410 4,5X30/18 TX20, AISI 410 4,5X35/24 TX20, AISI 410 4,5X40/24 TX20, AISI 410 4,5X45/30 TX20, AISI 410 4,5X50/30 TX20, AISI 410 4,5X60/36 TX20, AISI 410 4,5X70/42 TX20, AISI 410 4,5X80/54 TX20, AISI 410 5,0X100/60 TX25, AISI 410 5,0X40/24 TX25, AISI 410 5,0X45/30 TX25, AISI 410 5,0X50/30 TX25, AISI 410 5,0X60/36 TX25, AISI 410 5,0X70/42 TX25, AISI 410 5,0X80/54 TX25, AISI 410 5,0X90/54 TX25, AISI 410 6,0X100/60 TX25, AISI 410 6,0X120/70 TX25, AISI 410 6,0X140/70 TX25, AISI 410 6,0X160/70 TX25, AISI 410 6,0X60/36 TX25, AISI 410 6,0X80/54 TX25, AISI 410 6,0X90/54 TX25

Weight

N/A

Selected product

AISI 410 3,5X25/15 TX15, AISI 410 3,5X30/18 TX15, AISI 410 4,0X30/18 TX15, AISI 410 4,0X35/24 TX15, AISI 410 4,0X40/24 TX15, AISI 410 4,0X45/30 TX15, AISI 410 4,0X50/30 TX15, AISI 410 4,0X60/36 TX15, AISI 410 4,0X70/42 TX15, AISI 410 4,5X30/18 TX20, AISI 410 4,5X35/24 TX20, AISI 410 4,5X40/24 TX20, AISI 410 4,5X45/30 TX20, AISI 410 4,5X50/30 TX20, AISI 410 4,5X60/36 TX20, AISI 410 4,5X70/42 TX20, AISI 410 4,5X80/54 TX20, AISI 410 5,0X100/60 TX25, AISI 410 5,0X40/24 TX25, AISI 410 5,0X45/30 TX25, AISI 410 5,0X50/30 TX25, AISI 410 5,0X60/36 TX25, AISI 410 5,0X70/42 TX25, AISI 410 5,0X80/54 TX25, AISI 410 5,0X90/54 TX25, AISI 410 6,0X100/60 TX25, AISI 410 6,0X120/70 TX25, AISI 410 6,0X140/70 TX25, AISI 410 6,0X160/70 TX25, AISI 410 6,0X60/36 TX25, AISI 410 6,0X80/54 TX25, AISI 410 6,0X90/54 TX25
