Applications
Designed for thin-profiled panels, butt joints in steel and aluminum sheets, and securing domes on trapezoidal profiles.
Ideal for attaching trapezium holders (9032) to trapezoidal tin boards with optimal precision.

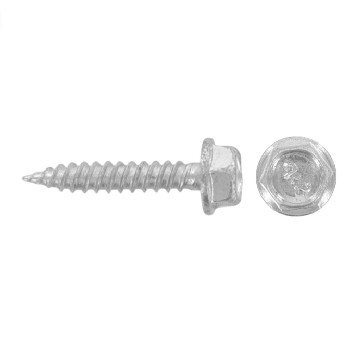

Utilizes BI-Metall technology, which fuses stainless steel screws with hardened carbon steel tips through a specialized welding process.
Recommended tightening torque for steel: approximately 3Nm for thicknesses of 1mm to 0.8mm.
Recommended tightening torque for aluminum: around 1Nm, with a torque of less than 0.5Nm for thicknesses under 0.8mm.
Fields of Use
Metal construction, machinery construction, and solar installations.
Characteristics
Durability: Combines stainless steel and carbon steel for enhanced strength and longevity.
Precision: Engineered to meet specific torque requirements for different materials.
Versatility: Suitable for various applications in metalworking and construction sectors.
Corrosion Resistance: Stainless steel components ensure resistance to rust and environmental damage.
| Weight | N/A |
|---|---|
| Selected product | A2/CV 4,5X25, A2/CV 4,5X38, A2/CV 6,0X25, A2/CV 6,0X38, A2/CV 4,5X25 EPDM washer 14 mm, A2/CV 4,5X38 EPDM washer 14 mm, A2/CV 6,0X25 EPDM washer 16 mm, A2/CV 6,0X38 EPDM washer 16 mm |
